MICRO BREAKOUT ARMED STEEL 2OF

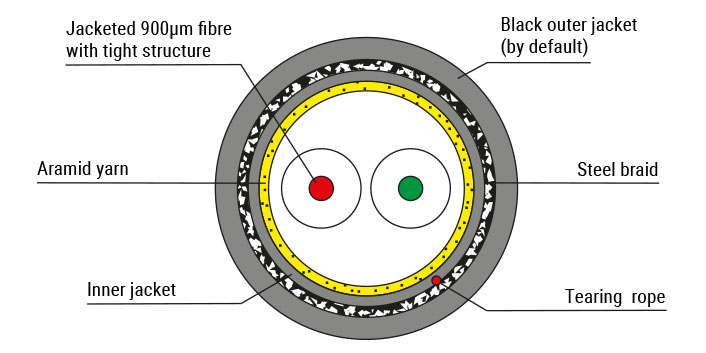

The armed steel 2OF micro breakout cables are made from a 7.9 mm diameter cable with aramid yarn and steel braid reinforcements. A fan out is installed on the cable to allow for the over-jacketing of each individual fibre. They allow quick connection:

• between active equipment;
• between active equipment and optical heads;
• between optical heads.

These small-diameter micro breakouts facilitate installation and wiring in frames and cable trays. They are made according to the following specifications:

• total length;
• fan out length;
• straight or offset connectors.

It is also possible to design half micro breakout cables if one end needs to be spliced.

•
  Fast implementation

•
  Meets regulatory standards

•
  Rodent proof
