PRE-WIRED ITOP-144

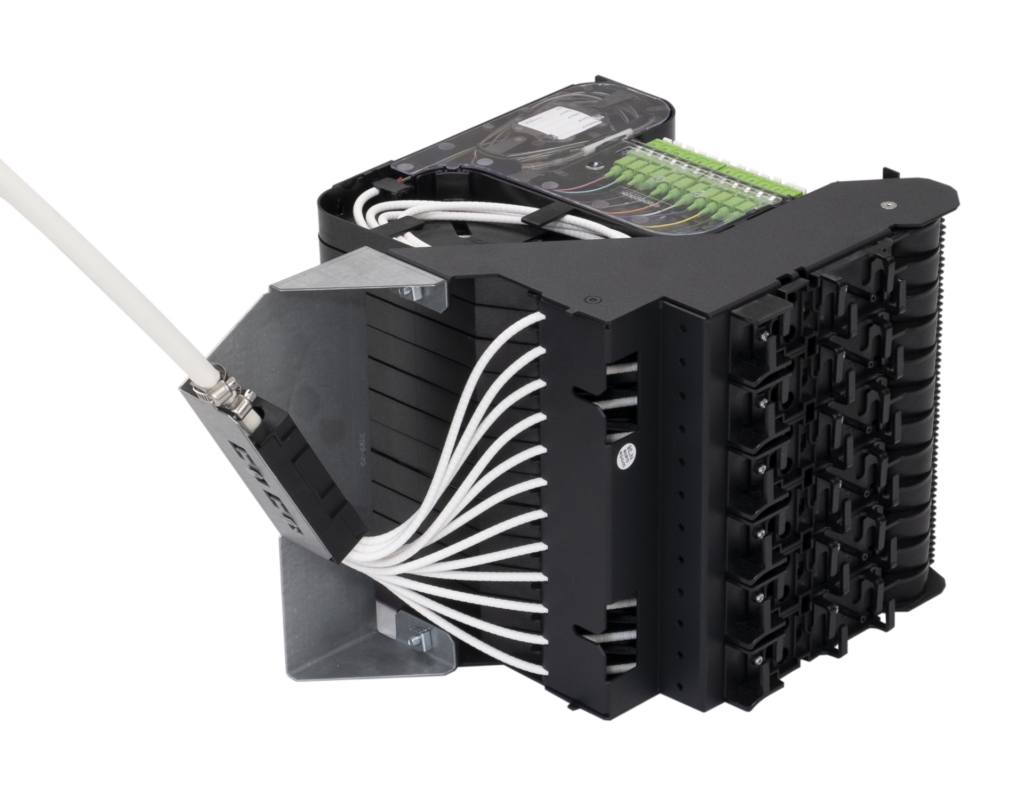

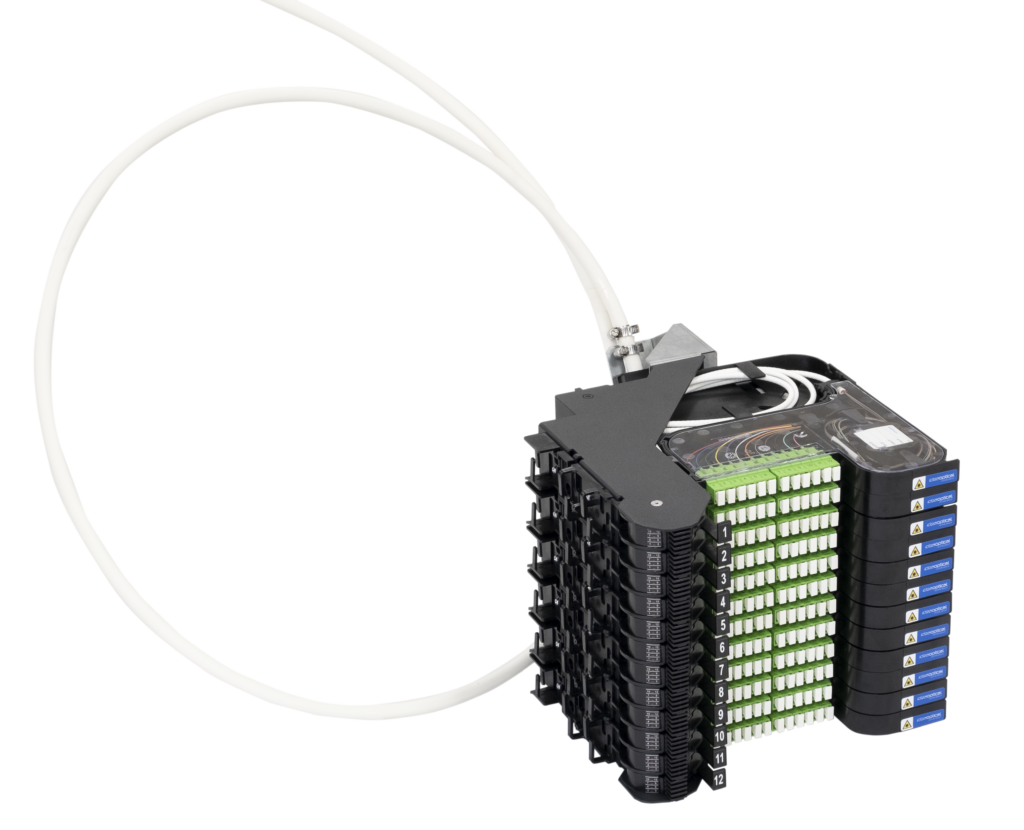

The pre-wired iTOP-144 is an optical head, with a height of 250 m, for iXIO or H-pile beams equipped with 12 iMOD-TOP- ER-12 pivoting optical modules and a 30 or 100 m cable tail (see ACOME cable data sheet). The pre-wired iTOP-144 is fastened directly to a profile via an indexing system that allows for quick, easy, and accurate positioning.
The pre-wired iTOP-144 is a 144 optical fibre head with a cable tail. The pre-wiring is done in the factory by mass splicing on batches of 12 pigtails. Maintenance is carried out by replacing individual pigtails via a standard splice in the splice holder.
It is equipped with a device for anchoring and storing fibre optic protection tubes. These tubes distribute the optical fibres to the various pivoting modules.
Cross-connect cords are managed via the left output of the head, then through the rings attached to the racks which manage the various flows.
Factory tested and assembled- Factory-Spliced
- Fast implementation
- Figure 8 Coil
- Pivot
- Serial number
- Storage
- Work station maintenance
Product benefits
- Fast deployment
- Factory splicing
- Factory assembly
- 8 coiling
