iSER-C
iSER-C racks are used for anchoring optical cables, distribution of fibres to connection modules, and management of cross- connect patch cords on the front panel.
They are installed on 19“or ETSI-format frames and receive the splicing and/or connection modules (see ”Compact modules“) as well as various cable anchoring systems (see ”Cable anchorings”).

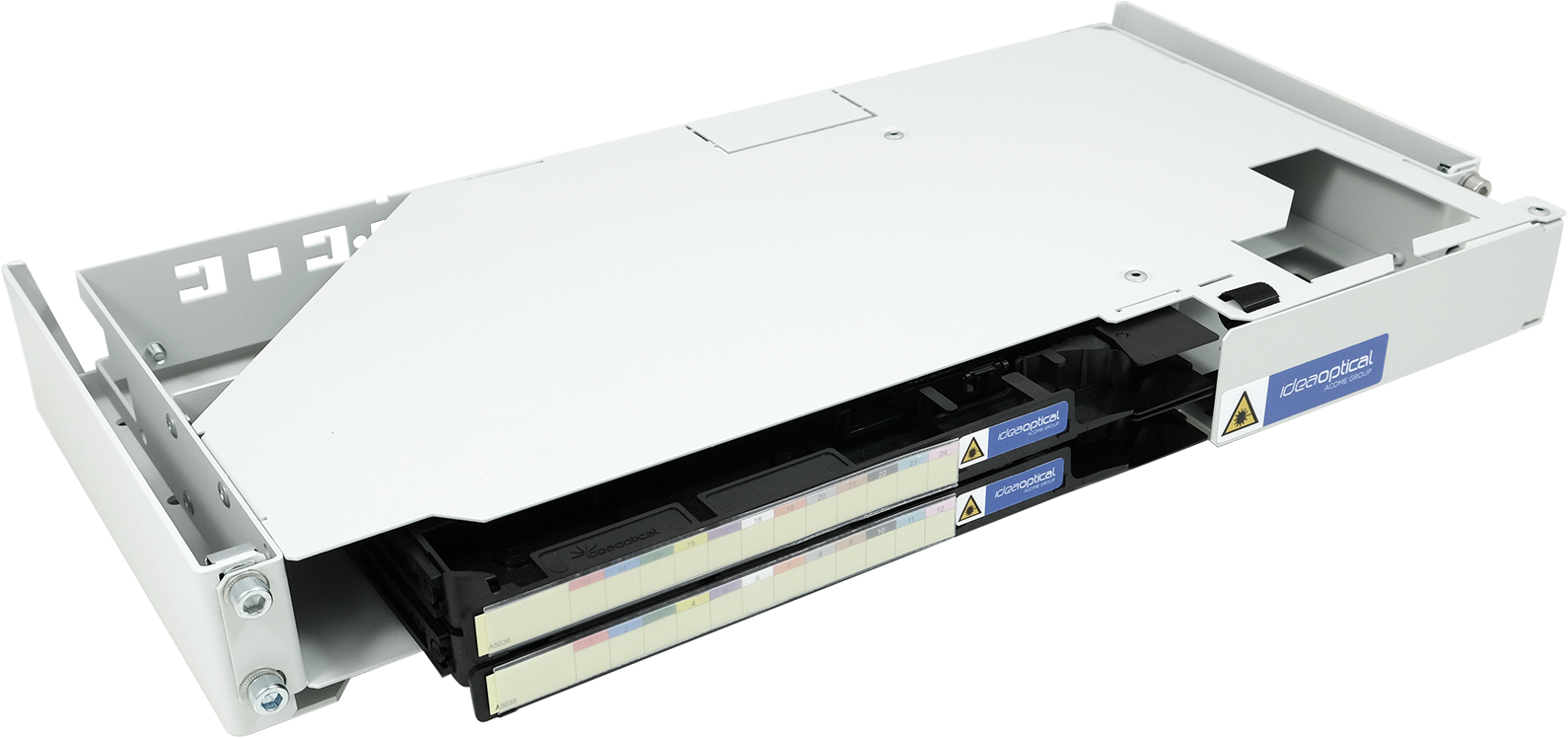

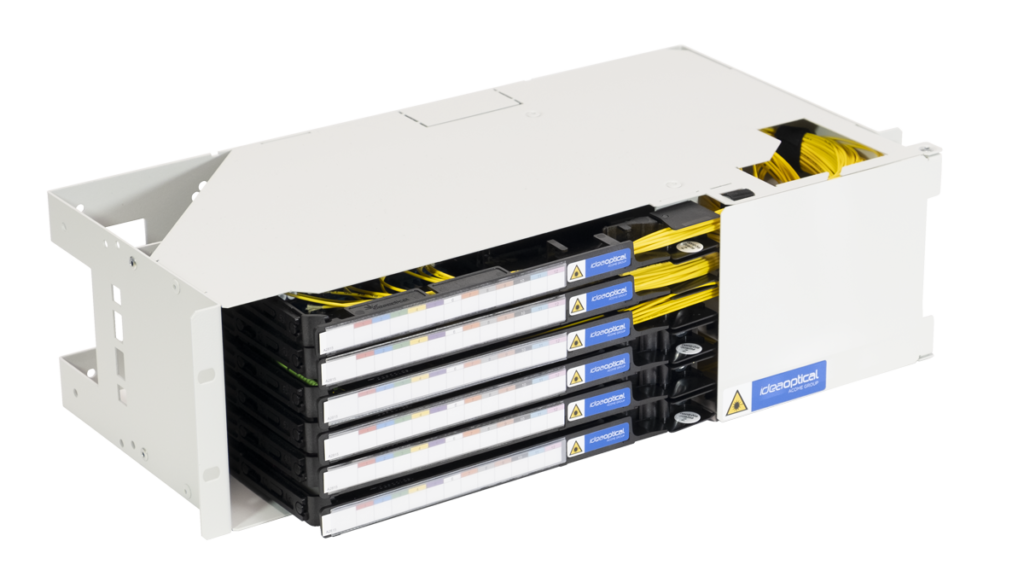

iSER-C racks come in 1U to 6U versions, thereby enabling a wide range of configurations.

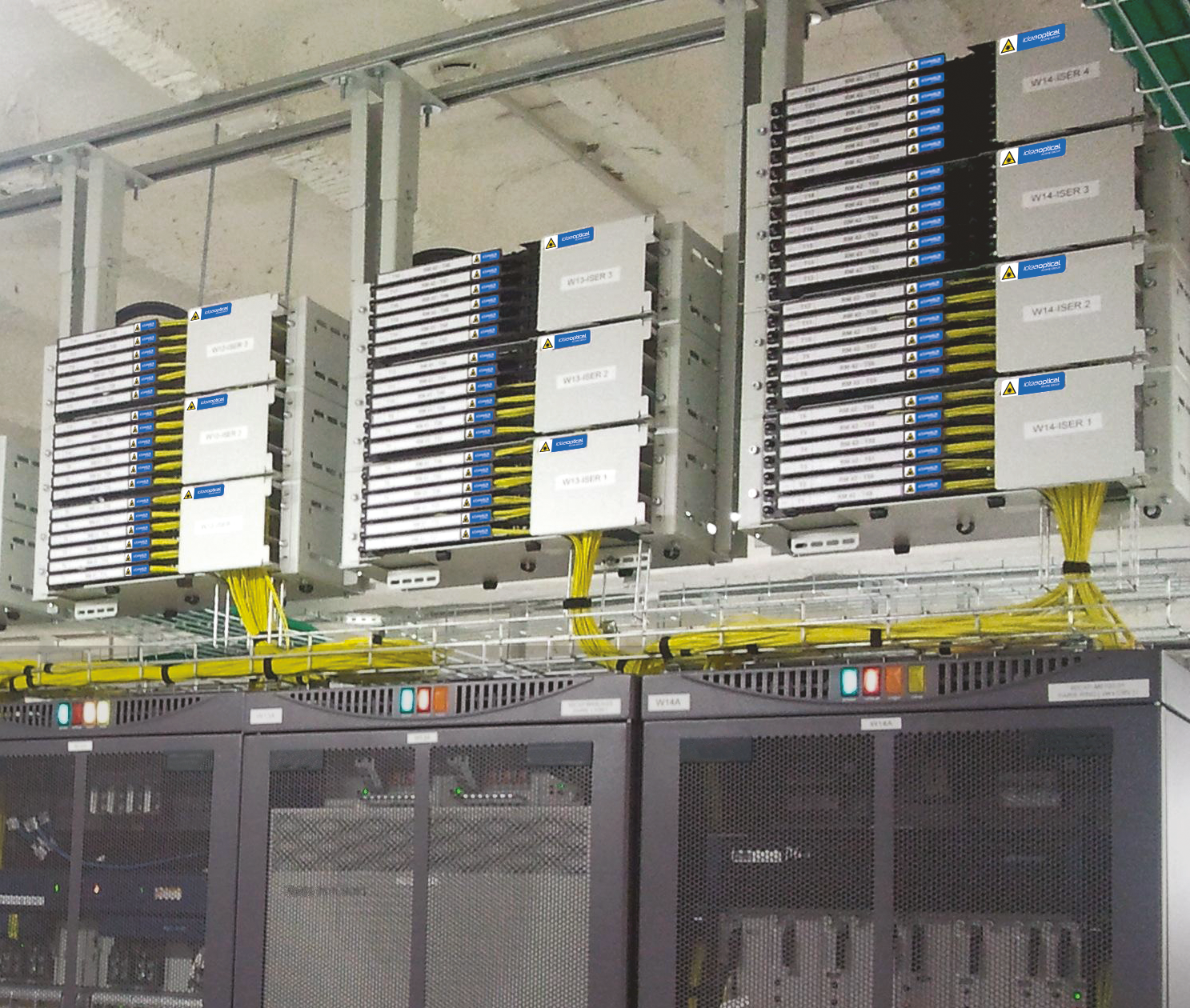

Attachment options are also available, enabling installation above an existing frame, under a cable tray, or directly on the ceiling.
The ISER-C is composed of:
- 1 metal chassis used to anchor one or more cables on the rear panel, using anchoring elements (BEC-48, BEC-72/144-6T or BEC-144/288-12T);
- 1 side coiling area for each module, with protective shutter or a vertical half-cylinder management area (iSER-C-RES);
- 1 adapter kit for ETSI frames.
Anchoring- Overlenght Management
- Serial number
- Stackable
Product benefits
- Attachment options are also available, enabling installation above an existing frame, under a cable tray, or directly on the ceiling
Business sheet
