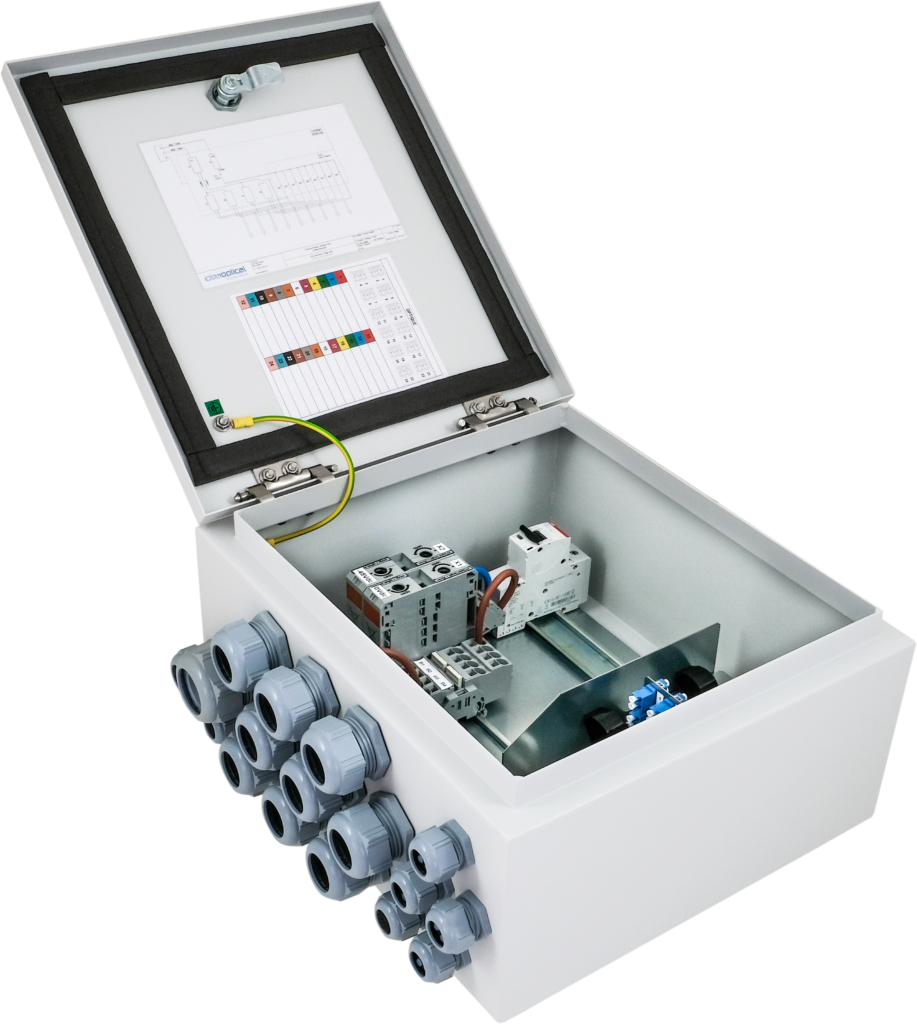

iCOL-AH-9/AF/AP

The iCOL-AH-9/AF/AP are secure outdoor wall mounted boxes used for the optical connection and power supply of RRUs (Remote Radio Units).

The iCOL-AH-9/AF/AP are composed of:

• 1 steel frame with RAL 7035 colour paint;
• 1 door secured by a lock;
• Different size cable glands to guarantee box leak tightness and cable input;
  • For the iCOL-AH-9, two inside parts containing:
    – On the right, 1 adapter panel of 12 LC duplex;
    – On the left, 1 switch disconnector, circuit breakers and terminal blocks for the RRU power supply;
• For the iCOL-AF, 1 12 duplex LC adapter panel;
  • For the iCOL-AP, switch disconnector, circuit breakers and
    terminal blocks for the RRU power supply
  • 1 fixing plate for pylons or poles (option).

•
  Independent Fiber Management

•
  IP65 Weatherproof

•
  Key-Locking

•
  Wall/post mounting
