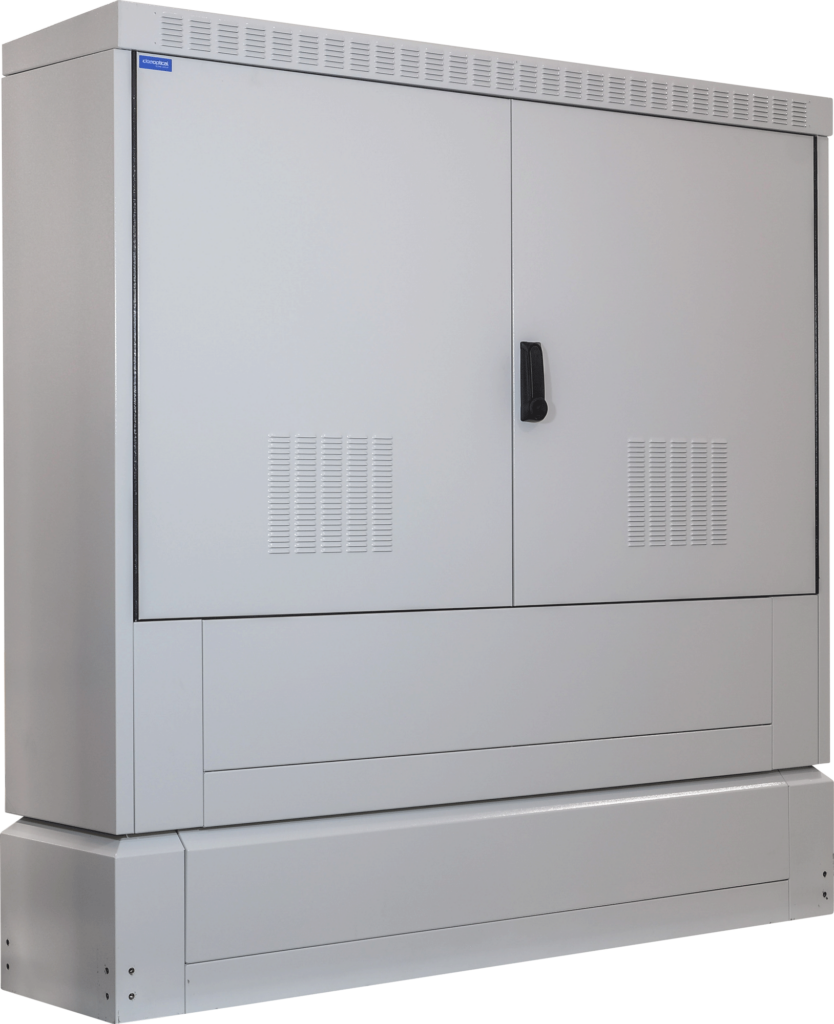

iBER-2050-RES OUTDOOR G1 BAT 2x19"+ ETSI

The iBER-2050-RES OUTDOOR G1 BAT 2×19″+ ETSI is a secure and weatherproofed street cabinet that can contain active and passive equipment. Its structure composed of aluminium, double-walled panels and forced ventilation and heating endow it with very good heat regulation performances. The external casing is secured by fixings that are only accessible from the inside.

The iBER-2050- RES OUTDOOR G1 BAT 2×19″+ ETSI cabinet is composed of :

• 1 single-part aluminium body;
• 1 secure and removable aluminium outer casing;
• 1 double-walled structure;
• 1 aluminium double door with 3-point lock and IP55 seal;
• 1 aluminium roof with ventilation;
• 1 base with removable front and side panels;
• 2 x 21U 19″ zones to fit optical equipment;
• 2 patch cord organisers to absorb the overlengths of optical patch cords;
• 1 central 38SU ETSI zone used to fit active equipment;
• 1 cable raceway for the passage of patch cords between the two 19” zones.
• 1 lower area reserved for the battery housings;
• 1 integrated base to provide perfect installation while facilitating sheath positioning.

The use of the cabinet is complemented by a number of items of equipment: built-in ventilation, LED lighting strips, document holder.
