PRE-TERMINATED CABLES

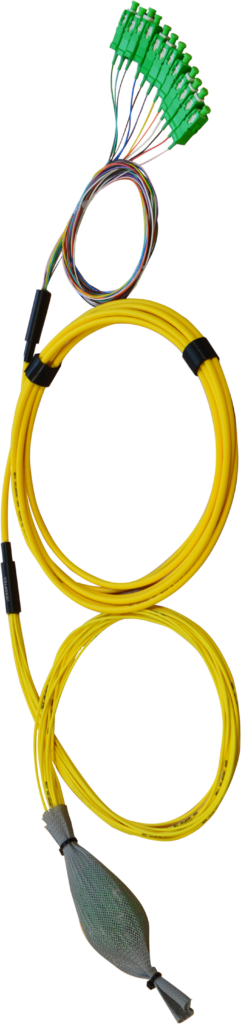

Micro breakouts are made using a 5mm diameter cable reinforced by aramid yarn with 12 and 24 optical fibres. A fan-out is fitted on the cable, enabling each fibre to be over-sheathed individually. The half micro breakout configuration allows the connection of one end of the cable in a splice tray.
The micro breakout cables allow a quick connection:
- between active devices;
- between active devices and optical heads;
- between optical heads.
These small diameter micro breakouts facilitate installation and cabling in frames and cable trays. They are composed of single-mode (G652 or G657) or multi- mode fibres which can be sheathed at 900 μm or 2mm on their ends. They are produced according to the following specifications:
- total length;
- fan-out length;
- sheathing at ends: 900 μm or 2mm;
- straight or offset connectors.
It is also possible to configure half micro breakout cables if one end needs to be spliced.
Fast implementation- Meets regulatory standards
Product benefits
- 6, 12 and 24 fibres;
- SC, FC, ST, LC, MU connectors;
- Fitting straight or offset connectors;
- PC, UPC and APC polishings;
- G652 or G657 single-mode fibres;
- OM2 to OM5 multimode fibres;
- aramid yarn reinforced cables – LSZH;
- RoHS compliant.
