BTO

The BTO (Optical Transition Box) is an IP54 optical connection box designed for indoor and outdoor installation on a façade or on a pole.
The BTO can be used as a transition box between exterior and interior cables, but also to restore a damaged optical link or as an ultra-compact optical connection point.

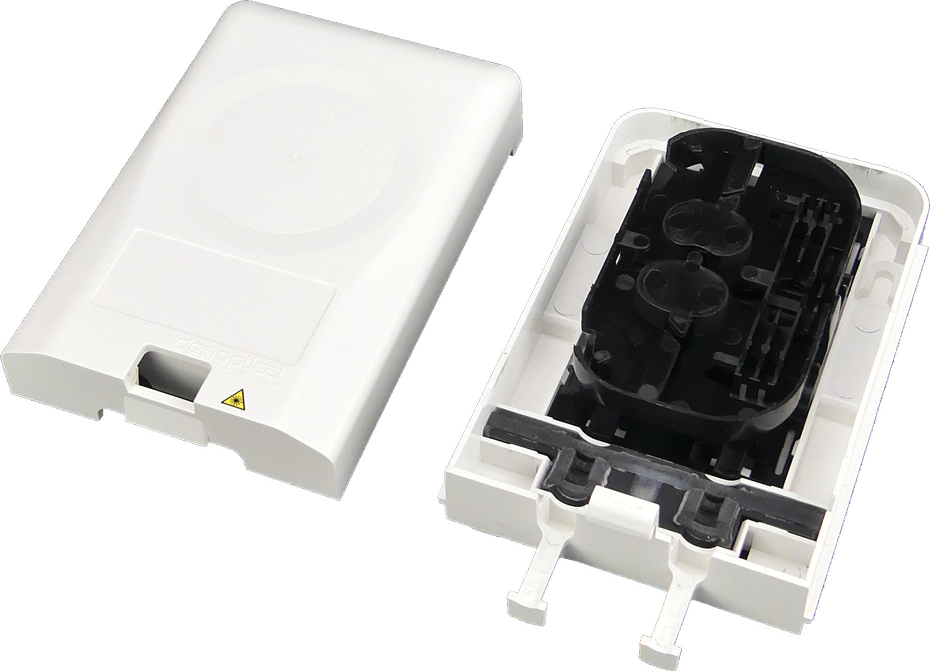

The BTO consists of:

• 1 base with 2 cable inputs (from Ø 2 to 6.2 mm) with 2 slotted holes for fixing.
• 1 splice tray (4 heat-shrinkable sleeve of max length: 45 mm and 4 protections ANT);

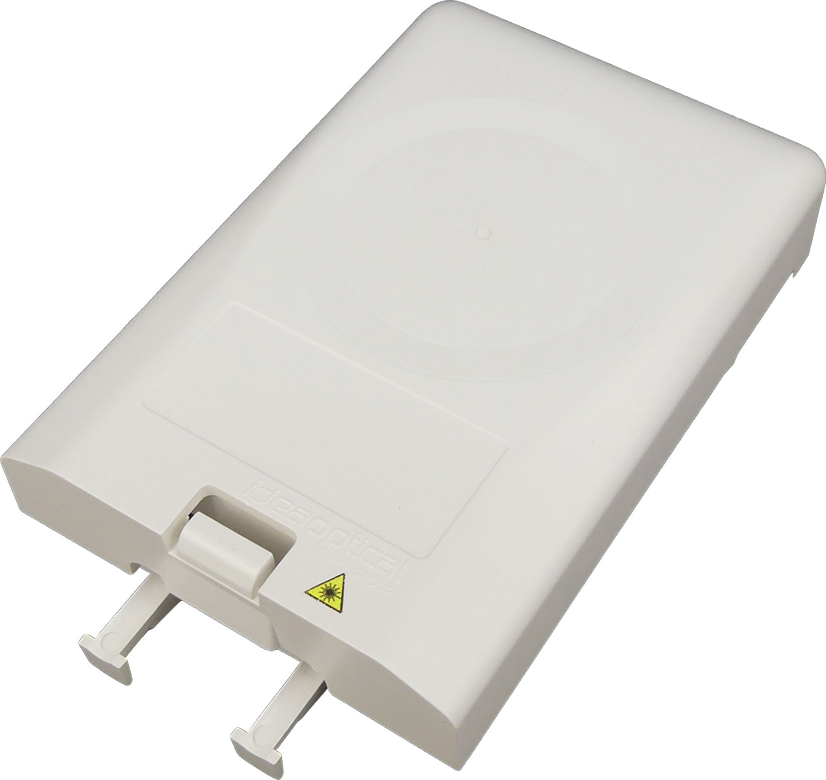

• 1 cover with identification area and LASER label;
• 1 stainless steel banding slot for pole mounting.

•
  Compact

•
  Meets regulatory standards

•

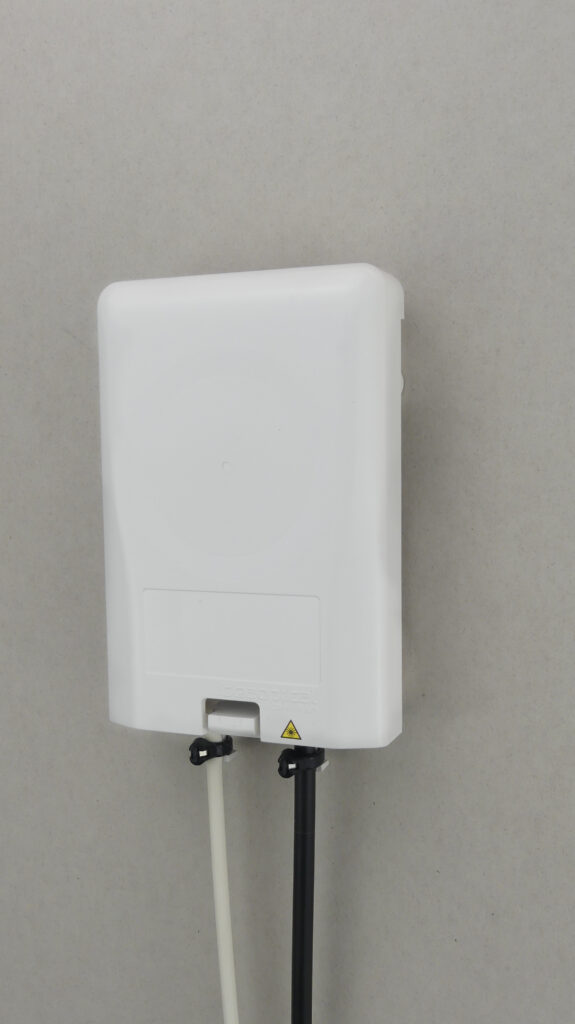

  Wall/post mounting
