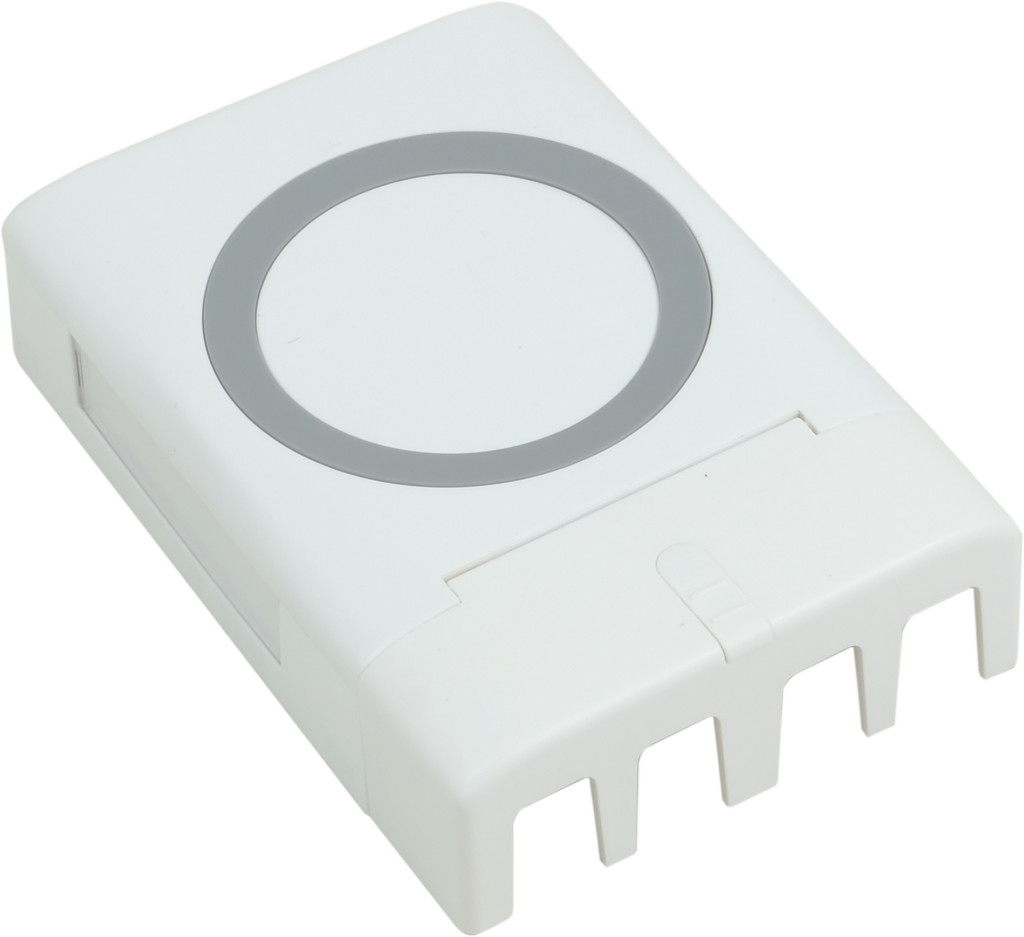

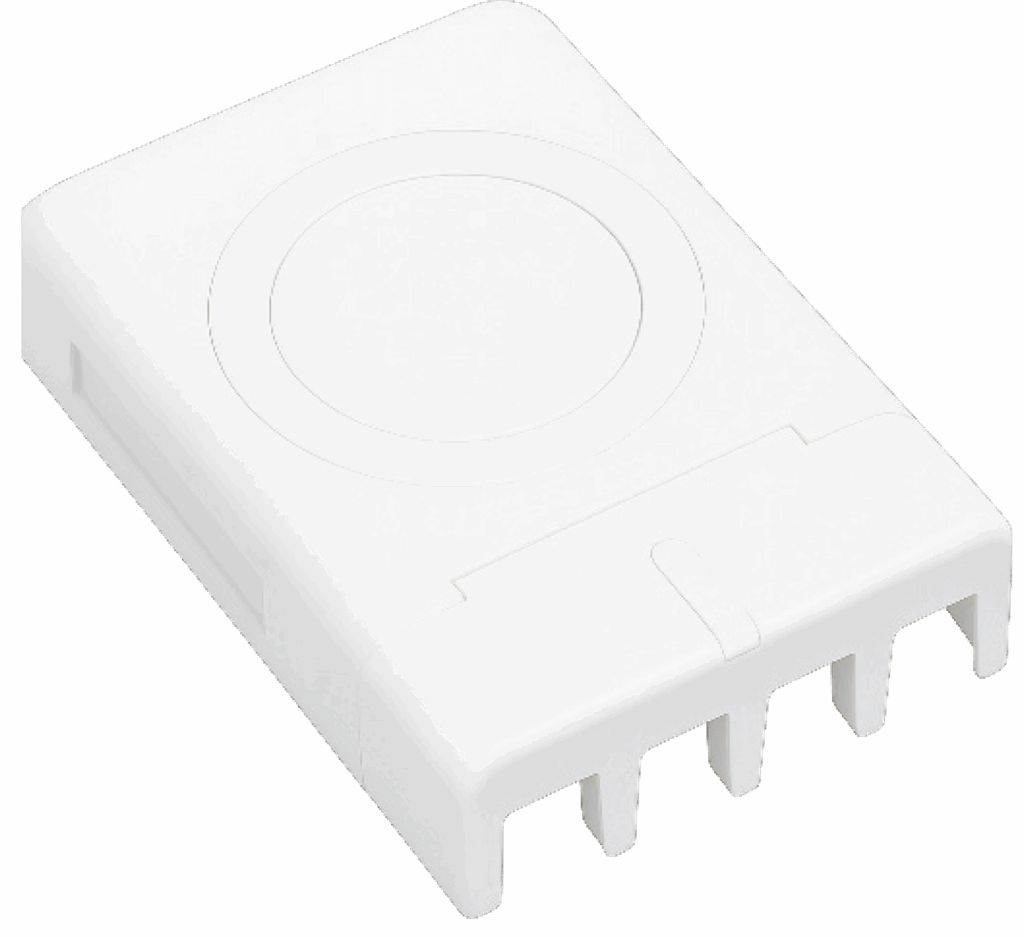

BRIO-S
The BRIO-S, our Internal Optical Terminal Outlet, is designed to be installed in residential premises.
The security function protects against opening and disconnection of optical patchcord.

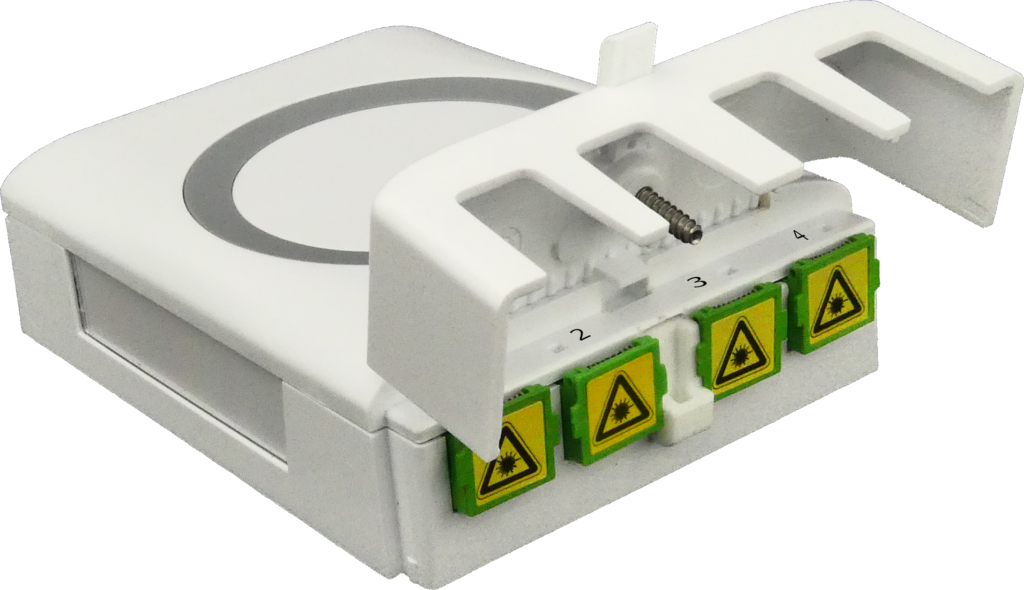

This outlet is available in 1 to 4 fibre versions. Installation is easy and can be either by pigtail splicing, or using a mountable field connector or by using a 900 μm pre-terminated cable.
One of the ports can be used to connect a micro-cable blown into a micro-duct.
Our Internal Optical Terminal Outlet, BRIO-S is composed of :
- 9 cable inputs;

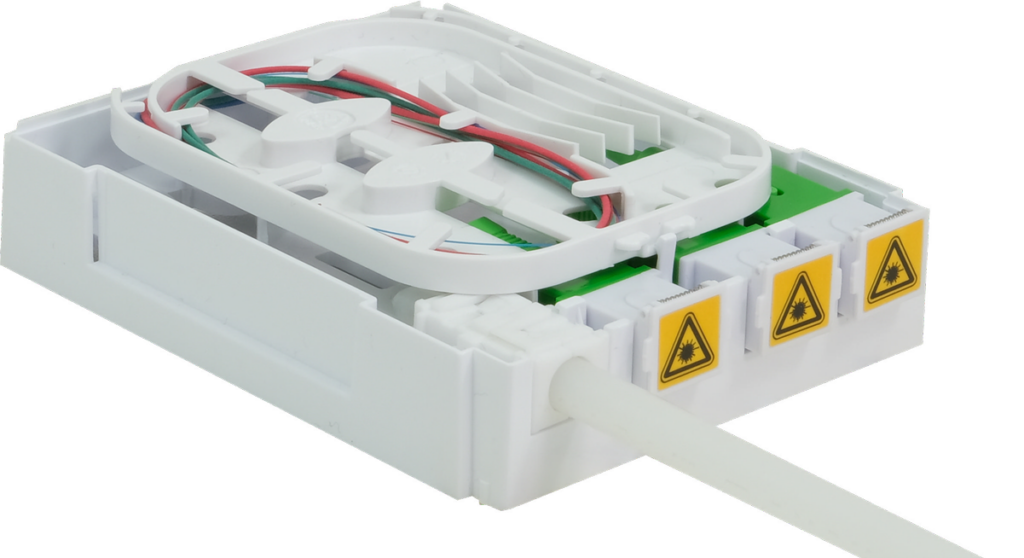

- 1 bare fibre or 900 μm bare fibre coiling tray which can hold up to 4 fusion splice protection jackets 45 mm long or for splitters 4 x 4 x 40 mm;
- 1 protective cover;

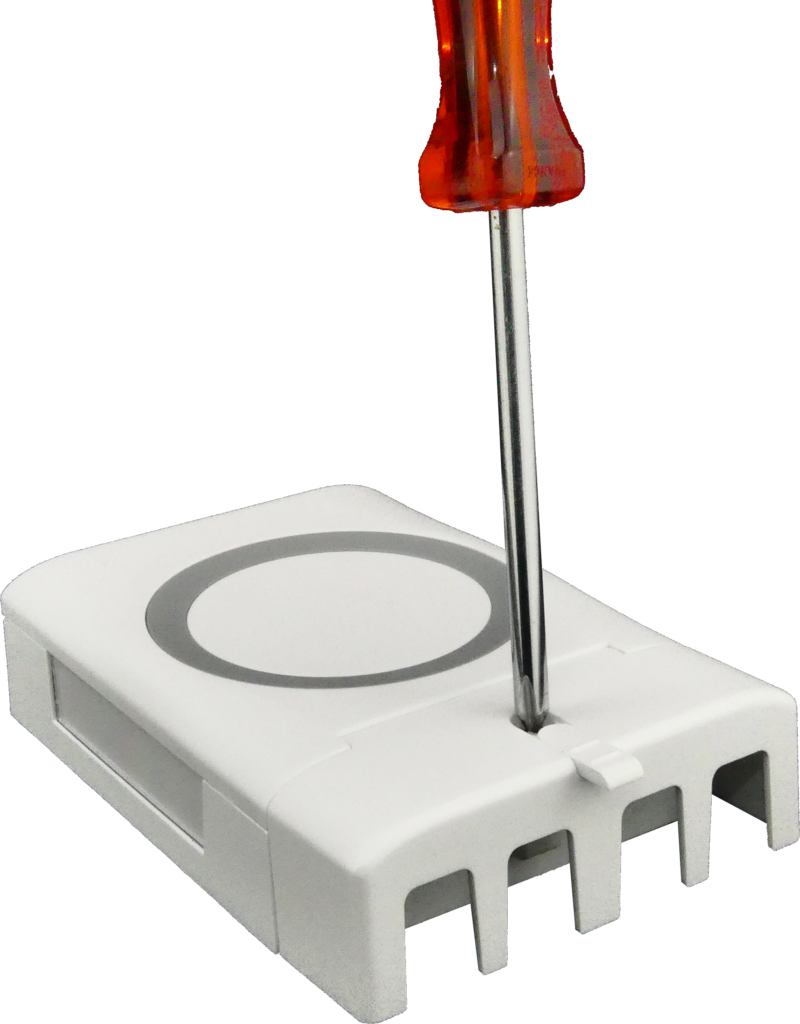

- 1 pivoting flap with 1 security screw;
- 1 identification area under clear label protection;
- 1 screw and dowel kit for wall mounting (option).
Fast implementation- Independent Fiber Management
- Rail mounting DIN
- Secure Connection
Product benefits
- Aesthetic product, matches all interiors.
- Can be mounted on a DIN rail or on a wall.
