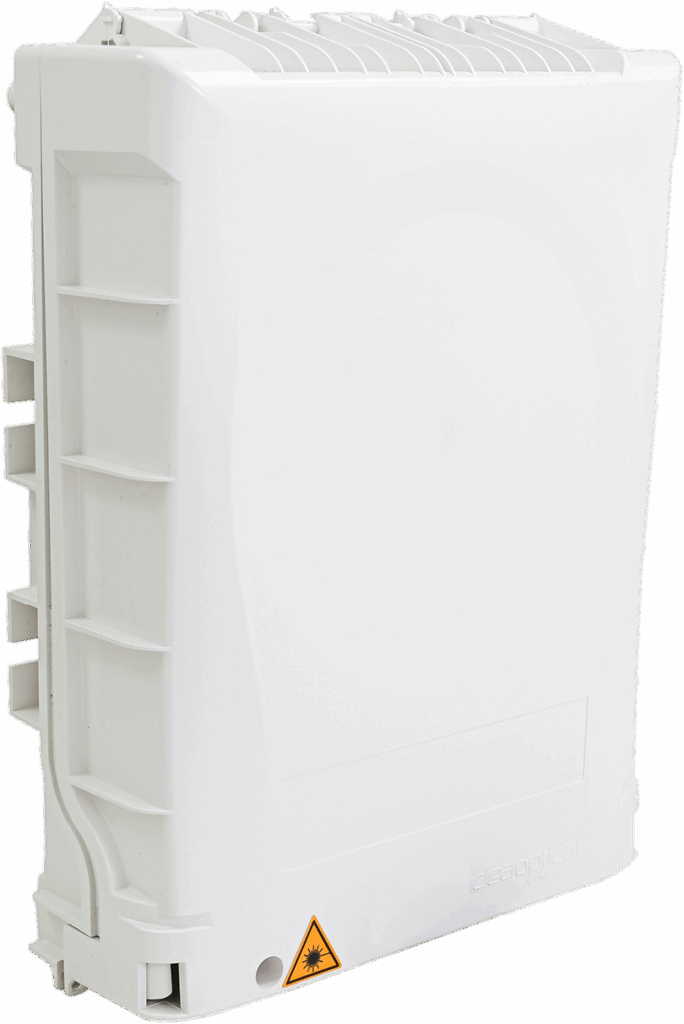

BRIO L-W

BRIO-L-W is an IP 54 optical connection box designed to be installed as a connection or sharing point, either inside a building or outside on a pole or facade.
It is modular and can be fitted in a 100% pre-connectorised version, ideal for PLUG AND PLAY applications such as antenna connection (FTTA).
Alternatively, it is possible to configure solutions based on welds between cables or using pigtails. Field assembly connectors can also be used.
BRIO-L-W can connect up to 24 subscriber cables. Three different technologies are available for the cable exits:

in-line seal;
cable grommet;
cable gland.

The BRIO-L-W, our IP 54 optical connection box is composed of:

1 base with a housing for the anchoring of distribution cables (up to Ø 16 mm) and a 12 SC connection strip;
1 individual cable anchoring system;
1 x 5-pitch bare fibre splice tray organiser for up to 60 splices and 5 splitter housings depending on the configuration;
1 banding passage for pole mounting;
1 cover with closing screw (screw optional), using clips, 2 positions for embedded seals and 1 identification zone;
1 banding passage for pole mounting;
1 splitter system between two boxes (option).
